15th June 2024

Understanding Memory Segments and Their Role in Memory Management


Memory management is a critical aspect of computer systems, determining how programs store and access data efficiently. To understand memory management fully, it's essential to delve into the concept of memory segments. Memory segments are specific areas of memory allocated for different types of data and program instructions. This article explores memory segments in detail, discussing their roles and how they contribute to effective memory management.

1. Introduction to Memory Segments

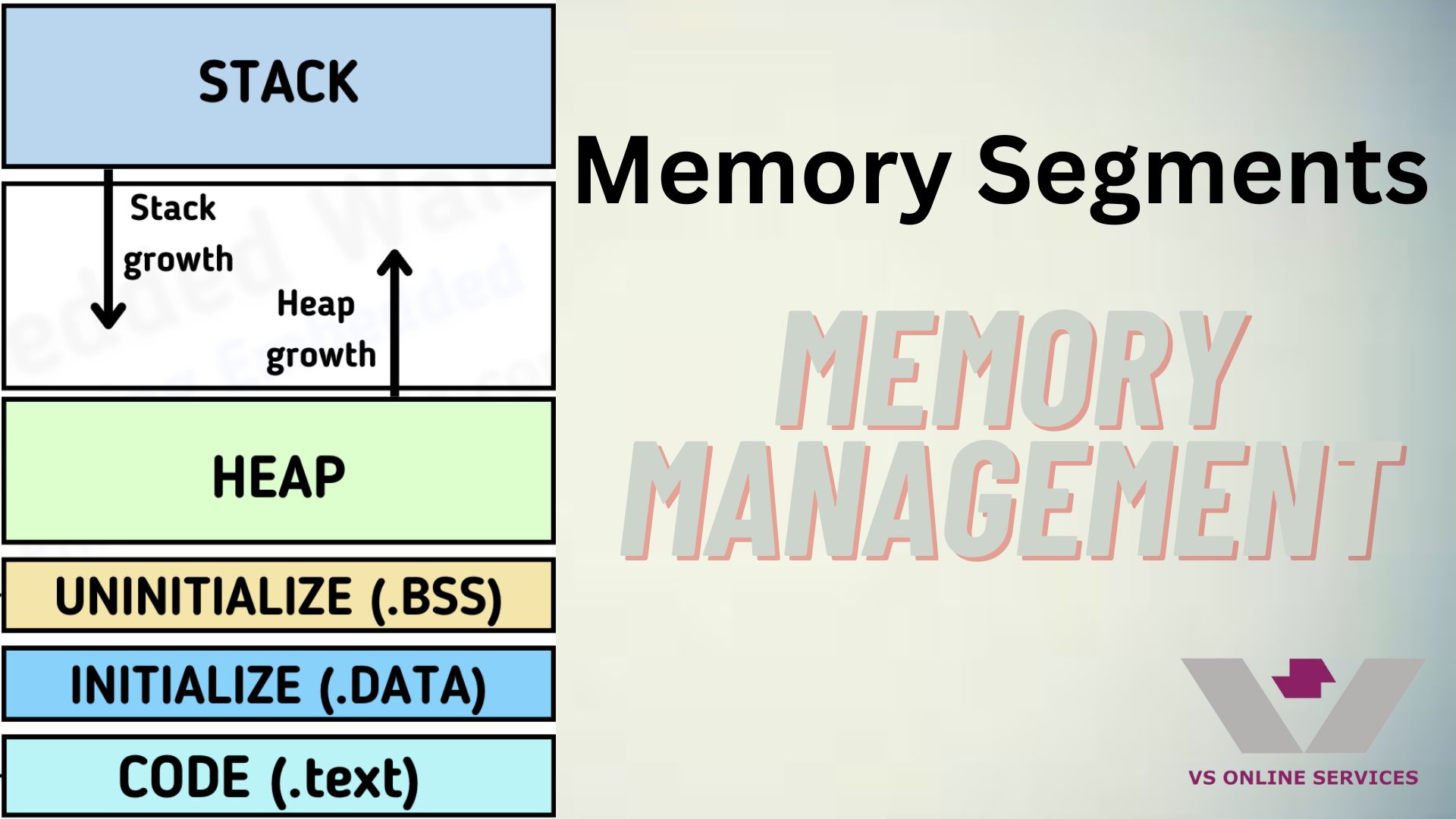

Memory segments are distinct sections of a computer's memory allocated for various purposes. The primary segments are:

  • Code Segment (Text Segment): Stores the executable instructions of a program.
  • Data Segment: Holds static and global variables.
  • Heap Segment: Used for dynamic memory allocation during program execution.
  • Stack Segment: Contains local variables, function parameters, and return addresses.

Each segment plays a unique role in memory management, ensuring that data is organized and accessed efficiently.

2. Detailed Breakdown of Memory Segments

Code Segment (Text Segment)
  • Definition: The code segment, also known as the text segment, contains the compiled program code or executable instructions. This segment is usually read-only to prevent accidental modification of instructions during execution.
  • Read-only: Protects the integrity of the program code.
  • Fixed size: Determined at compile time.
  • Shared among processes: Multiple processes can share the same code segment, reducing memory usage.
Data Segment
  • Definition: The data segment stores global and static variables that are initialized before program execution.
  • Read-write: Variables can be modified during execution.
  • Divided into two parts:
  • 1. Initialized Data Segment: Contains variables that are initialized with a specific value.
  • 2. Uninitialized Data Segment (BSS): Contains variables that are declared but not initialized. These variables are set to zero at runtime.
Heap Segment
  • Definition: The heap segment is used for dynamic memory allocation. It grows and shrinks as needed during program execution.
  • Managed using pointers and dynamic memory allocation functions (e.g., malloc, free in C/C++).
  • Fragmentation can occur, leading to inefficient memory use.
  • The size is flexible, expanding and contracting based on memory allocation and deallocation.
Stack Segment
  • Definition: The stack segment is used for storing local variables, function parameters, and return addresses. It operates on a last-in, first-out (LIFO) principle.
  • Fast access: Due to its LIFO nature, accessing the stack is quick.
  • Size is limited: The stack has a maximum size, and exceeding it can lead to stack overflow.
  • Automatic management: Memory is automatically allocated and deallocated when functions are called and return.

3. Role of Memory Segments in Memory Management

Each memory segment contributes to memory management in specific ways:

Code Segment
  • Efficiency: By keeping the code segment read-only, the system ensures that the program code remains unchanged, enhancing security and stability.
  • Sharing: Sharing the code segment among processes reduces memory usage, as multiple instances of a program can use the same code without duplicating it in memory.
Data Segment
  • Organization: Separating initialized and uninitialized data allows for better organization and management of global and static variables.
  • Memory Utilization: By initializing variables in the data segment, the system can optimize memory use and access patterns.
Heap Segment
  • Flexibility: The heap segment provides flexibility for dynamic memory allocation, allowing programs to request and release memory as needed.
  • Memory Management: Dynamic memory allocation functions and garbage collection (in languages like Java) help manage the heap, preventing memory leaks and fragmentation.
Stack Segment
  • Efficiency: The stack's LIFO structure allows for efficient function call management, with automatic memory allocation and deallocation for local variables and parameters.
  • Protection: Stack memory management helps protect against buffer overflows and other vulnerabilities by limiting the size of the stack and monitoring access patterns.

4. Interaction Between Memory Segments

The interaction between different memory segments is crucial for efficient memory management. For example:

  • Function Calls: When a function is called, the return address is pushed onto the stack, and local variables are allocated on the stack. The code segment is then executed, possibly accessing global variables in the data segment and dynamically allocated memory in the heap.
  • Dynamic Allocation: When memory is allocated on the heap, pointers to this memory may be stored in the data or stack segments, enabling efficient access and manipulation of dynamically allocated data.

5. Challenges and Considerations

Effective memory management involves addressing several challenges:

  • Fragmentation: Both the heap and stack can suffer from fragmentation, leading to inefficient memory use.
  • Security: Protecting memory segments, especially the stack and heap, from overflow and injection attacks is crucial for system security.
  • Performance: Balancing the speed of memory access with the need for dynamic allocation and protection requires careful optimization.


Memory segments are fundamental to the structure and management of computer memory. By dividing memory into distinct segments—code, data, heap, and stack—systems can efficiently organize and manage data and instructions. Understanding the roles and interactions of these segments is essential for developers and system architects to optimize memory usage, enhance performance, and ensure system security. Effective memory management remains a cornerstone of robust and efficient software development.
